Open drawing

There are three ways to open a new drawing in infra-CONVERT:

• click on the Open drawing icon,
• select Open... in the Drawing menu,
• use the CRTL+O shortcut key combination Key commands.

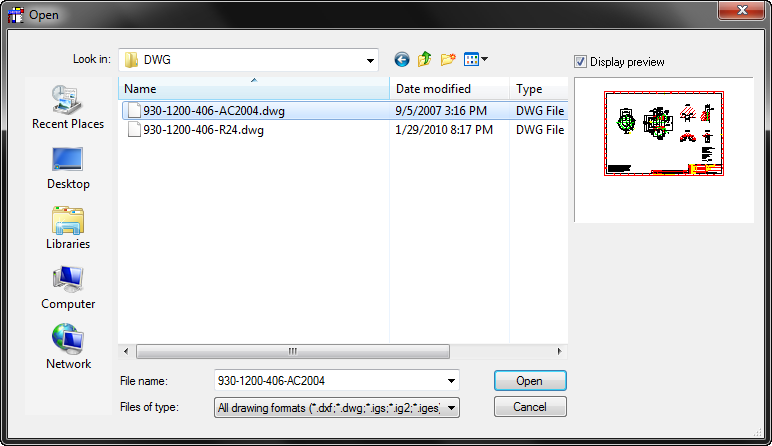

The following window opens:



This window is a standard OS dialogue window with the following features:

A preview of the file selected is shown in the right-hand pane of the window. This preview is not generated by infra-CONVERT but uploaded from the file itself. The preview function is only available for certain types of file format.

Use “File type” to display the file format you want.

• infra-CONVERT Project only displays infra-CONVERT project files. Select this option if you want edit an existing saved project plan.
• All graphics formats only displays the graphic files formats supported.
• All drawing formats only displays the CAD drawing formats supported.

For more information about supported file formats see: Supported drawing formats.
