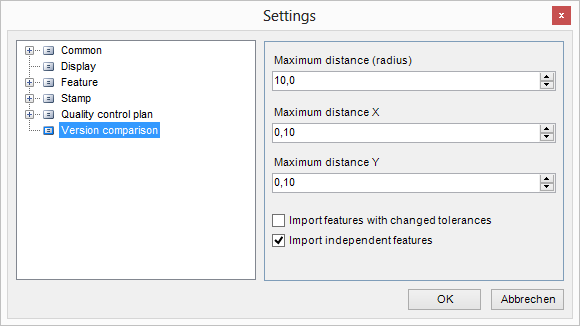

Version comparison

Two features are considered as being the same when they contain the same text and occupy the same position.

• Maximum distance (radius): This sets the maximum radial distance for features with the same text which can be moved from one drawing version to the next and still be considered the same feature.
• Maximum distance X: This sets the maximum distance in the X plane which a feature can be moved one drawing version to the next and still be considered the same feature.
• Maximum distance Y: This sets the maximum distance in the Y plane which a feature can be moved one drawing version to the next and still be considered the same feature.
• Import features with changed tolerances: ¹⁾ If this setting is set infra-CONVERT imports dimensions with new tolerances under the old stamp number and ID (treats them as NOT changed).
• Import independent features: ²⁾ If this setting is set (default), attributive features will be imported when doing a version comparison.

For more information see: ⇒ Load old projects
